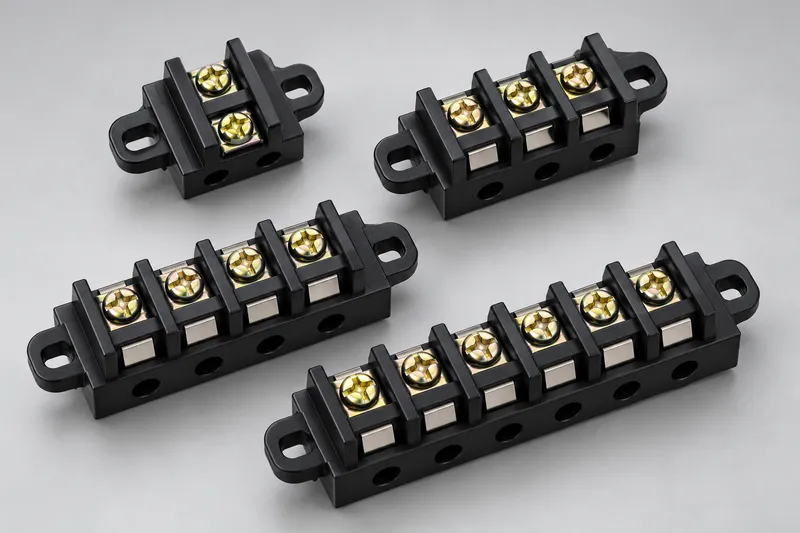

Bakelite Terminal Block Strip
Heat-resistant Bakelite (phenolic) terminal block strips with brass inserts and screw clamps. A rugged, economical choice for joining and distributing wires in panels, appliances and electrical equipment.
Bakelite Terminal Block Strip
Heat-resistant Bakelite (phenolic) terminal block strips with brass inserts and screw clamps. A rugged, economical choice for joining and distributing wires in panels, appliances and electrical equipment.
Variants 4
Technical Specifications
| Body Material | Bakelite (phenolic moulding) |
| Insert Material | Brass |
| Screw Material | Steel, zinc / nickel-plated |
| Current Rating | 5A to 60A |
| Voltage Rating | Up to 440V AC |
| Wire Range | 1mm² to 16mm² |
| Ways per Strip | 12 (cuttable) |
| Operating Temperature | -20°C to +120°C |
| Mounting | Screw mount |
Key Features
- Moulded Bakelite (phenolic) body — rigid, heat-resistant and non-hygroscopic
- Solid brass inserts for low contact resistance
- Zinc / nickel-plated steel screws for firm wire clamping
- Standard 12-way strips — easily cut to the required number of ways
- Ratings from 5A to 60A
- Will not soften or deform near hot components
- Mounting holes for screw fixing to panels and chassis
- Economical, maintenance-free wire termination
Applications
- Control and distribution panels
- Home appliances — geysers, heaters, ovens and coolers
- Motor and pump wiring
- Transformers and stabilizers
- Lighting fixtures and switchboards
- General electrical and OEM equipment
Bakelite Terminal Block Strips
Unison Connectors manufactures Bakelite terminal block strips, which have long been used for wire joining in Indian electrical work. Each strip is a row of brass inserts moulded into a rigid phenolic (Bakelite) body. Each insert has two clamping screws, so two conductors can be joined securely without soldering or taping.
Bakelite is a thermoset plastic, so it doesn’t soften when heated. That makes these strips well suited to appliances and panels where nearby components run hot.
Why Choose Bakelite Terminal Strips?
- Heat resistance - The thermoset body keeps its shape at temperatures that would soften ordinary plastics
- Rigid and durable - Screws can be tightened firmly without cracking or distorting the housing
- Good electrical insulation - Phenolic resin has high dielectric strength and low moisture absorption
- Flexible length - Standard 12-way strips can be cut to any number of ways on site
- Cost-effective - Simple, proven construction at an economical price
Construction Details
- Body - Moulded Bakelite (phenolic resin) for heat resistance and insulation
- Inserts - Brass connector tubes for good conductivity and corrosion resistance
- Screws - Plated steel clamping screws, two per way
- Fixing - Moulded mounting holes for screwing the strip to a panel or chassis
Available Ratings
| Rating | Wire Size | Ways per Strip |
|---|---|---|
| 5A | Up to 1mm² | 12 |
| 10A | Up to 1.5mm² | 12 |
| 15A | Up to 2.5mm² | 12 |
| 30A | Up to 6mm² | 12 |
| 60A | Up to 16mm² | 12 |
Custom ratings, way counts and packaging are available on request for bulk and OEM orders.
