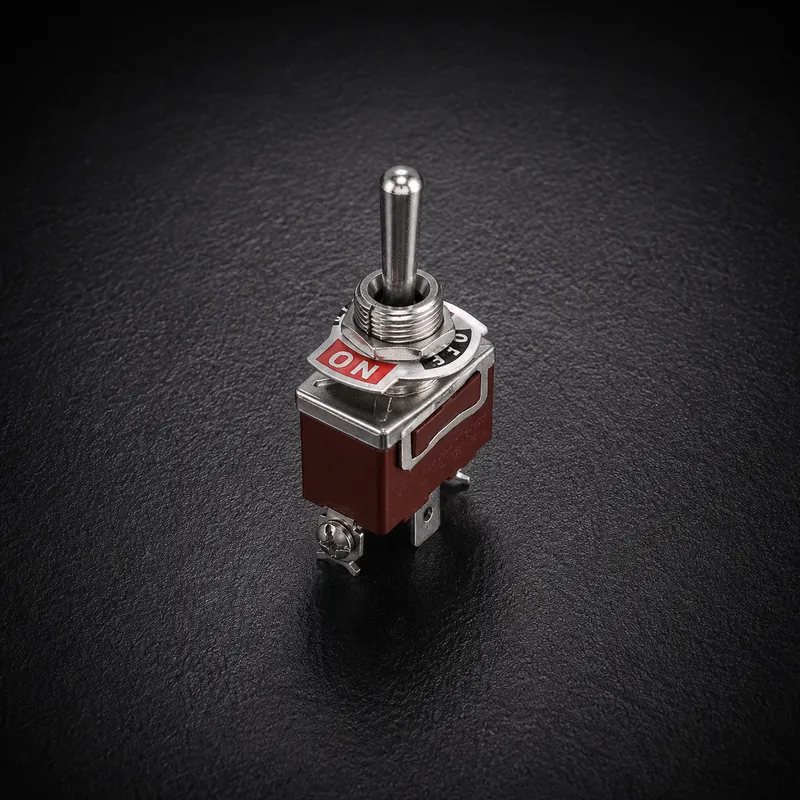

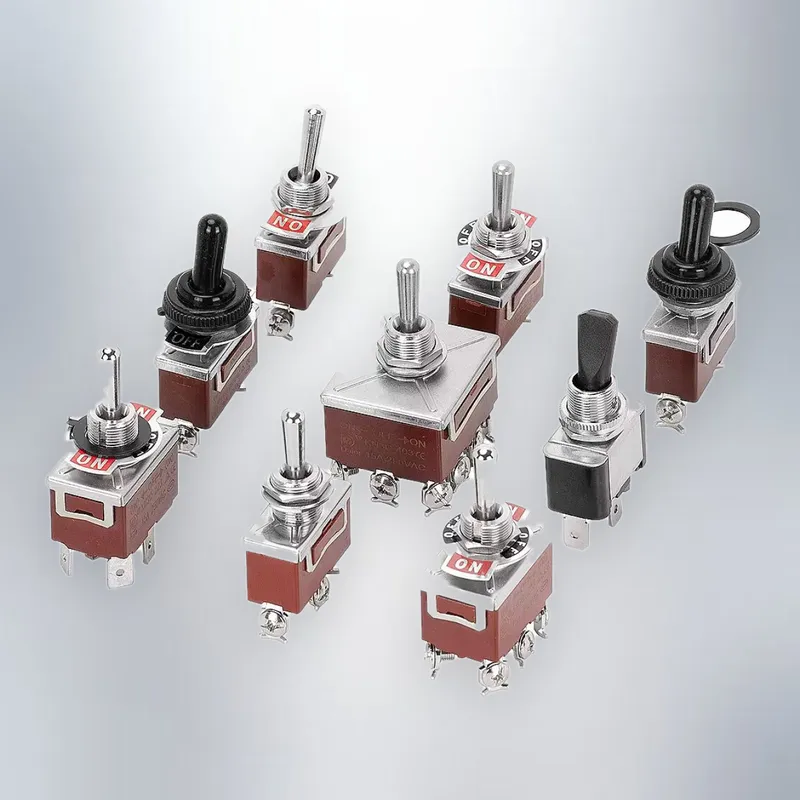

Toggle Switches
High-quality industrial toggle switches designed for reliable performance in demanding environments. Available in various configurations including SPST, SPDT, DPST, and DPDT.
Toggle Switches
High-quality industrial toggle switches designed for reliable performance in demanding environments. Available in various configurations including SPST, SPDT, DPST, and DPDT.
Technical Specifications
| Contact Rating | 15A @ 250VAC / 20A @ 125VAC |
| Contact Resistance | ≤ 20mΩ |
| Insulation Resistance | ≥ 100MΩ |
| Dielectric Strength | 1500VAC for 1 minute |
| Operating Temperature | -25°C to +85°C |
| Mechanical Life | 50,000 cycles |
| Terminal Type | Solder lug / Quick connect |
Key Features
- Available in SPST, SPDT, DPST, DPDT configurations
- High current rating up to 15A at 250VAC
- Silver alloy contacts for superior conductivity
- IP67 rated options available for harsh environments
- Operating temperature range: -25°C to +85°C
- Mechanical life: 50,000 cycles minimum
- Multiple mounting options: panel, PCB, chassis
- RoHS compliant materials
Applications
- Industrial control panels
- Power distribution systems
- Automation equipment
- Marine and automotive electronics
- Test and measurement instruments
- Lighting control systems
Premium Toggle Switches by Unison Connectors
Unison Connectors manufactures a comprehensive range of toggle switches engineered for industrial-grade reliability. Our toggle switches are designed to meet the demanding requirements of industrial control systems, power distribution, and automation equipment.
Why Choose Our Toggle Switches?
With decades of manufacturing expertise, we deliver toggle switches that combine robust construction with precision engineering. Each switch undergoes rigorous quality testing to ensure consistent performance throughout its operational life.
Construction & Design
Our toggle switches feature:
- Silver alloy contacts that provide excellent conductivity and resistance to arcing
- High-grade thermoplastic housings that withstand harsh industrial environments
- Precision toggle mechanisms ensuring positive tactile feedback
- Sealed variants with IP67 protection for moisture and dust resistance
Quality Assurance
As an ISO 9001:2015 certified manufacturer, every batch of toggle switches undergoes comprehensive testing including contact resistance verification, insulation resistance testing, and mechanical endurance validation.
Custom Solutions
We offer customization options including:
- Custom lever lengths and styles
- Special plating and finishes
- Modified contact ratings
- Custom terminal configurations
- Private labeling and packaging
